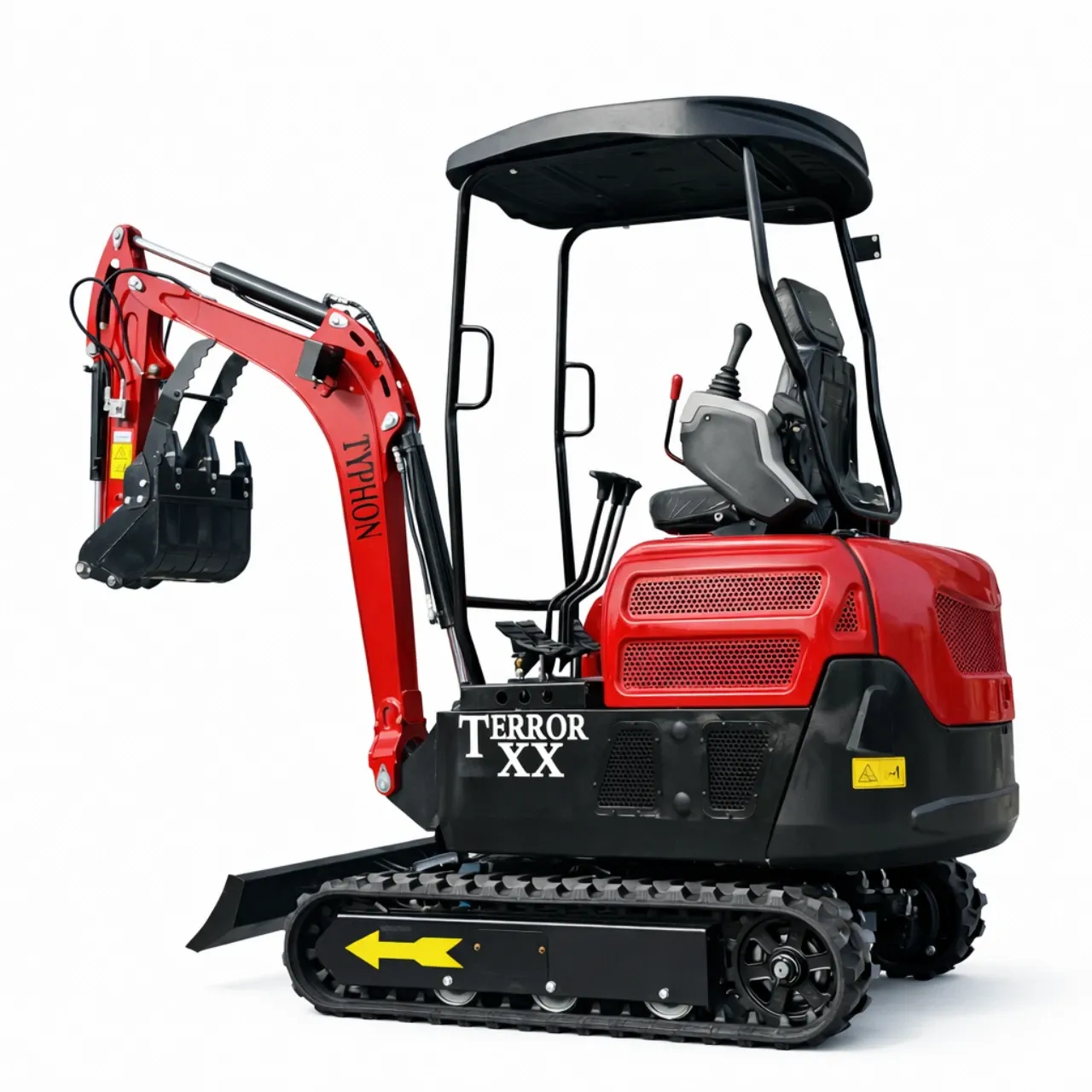

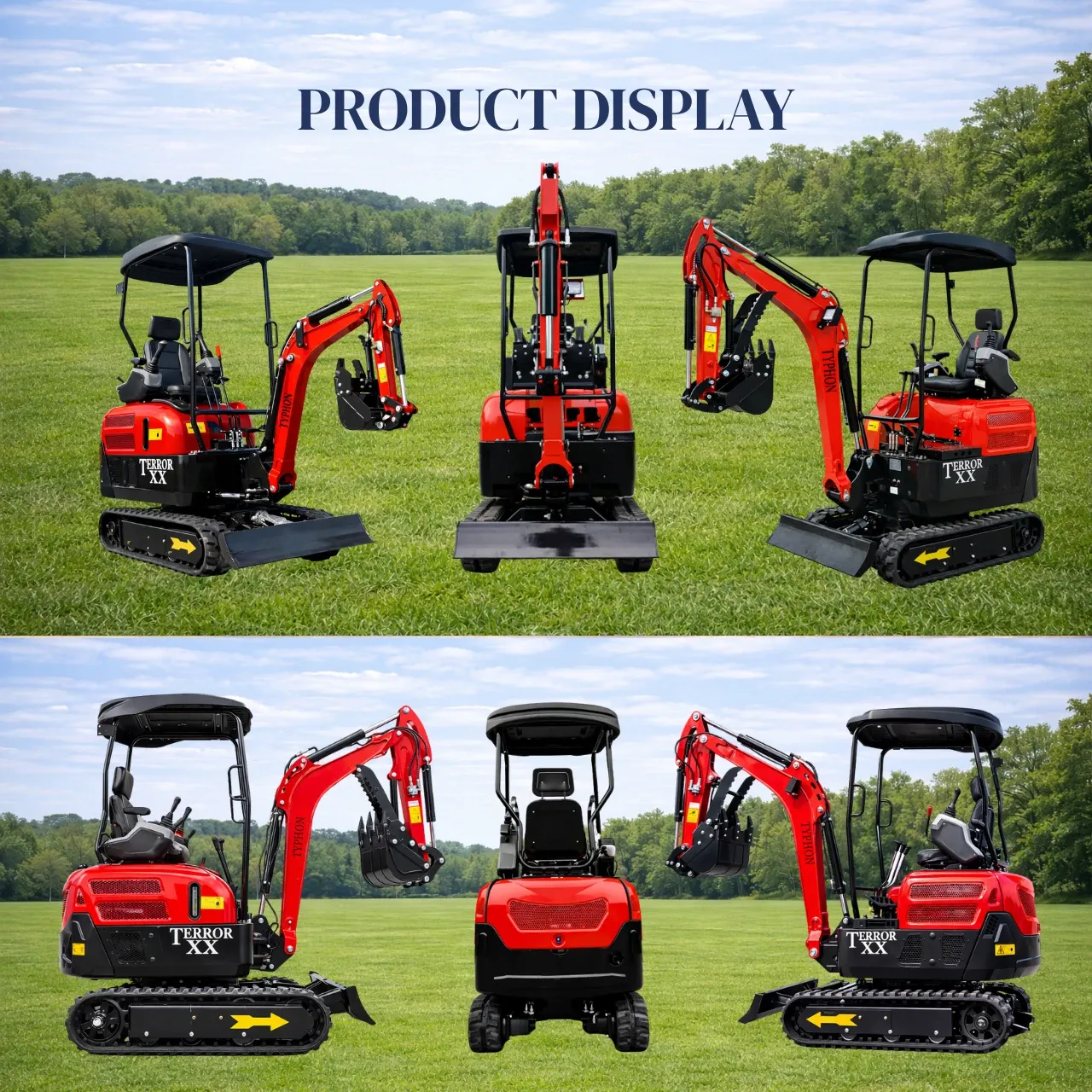

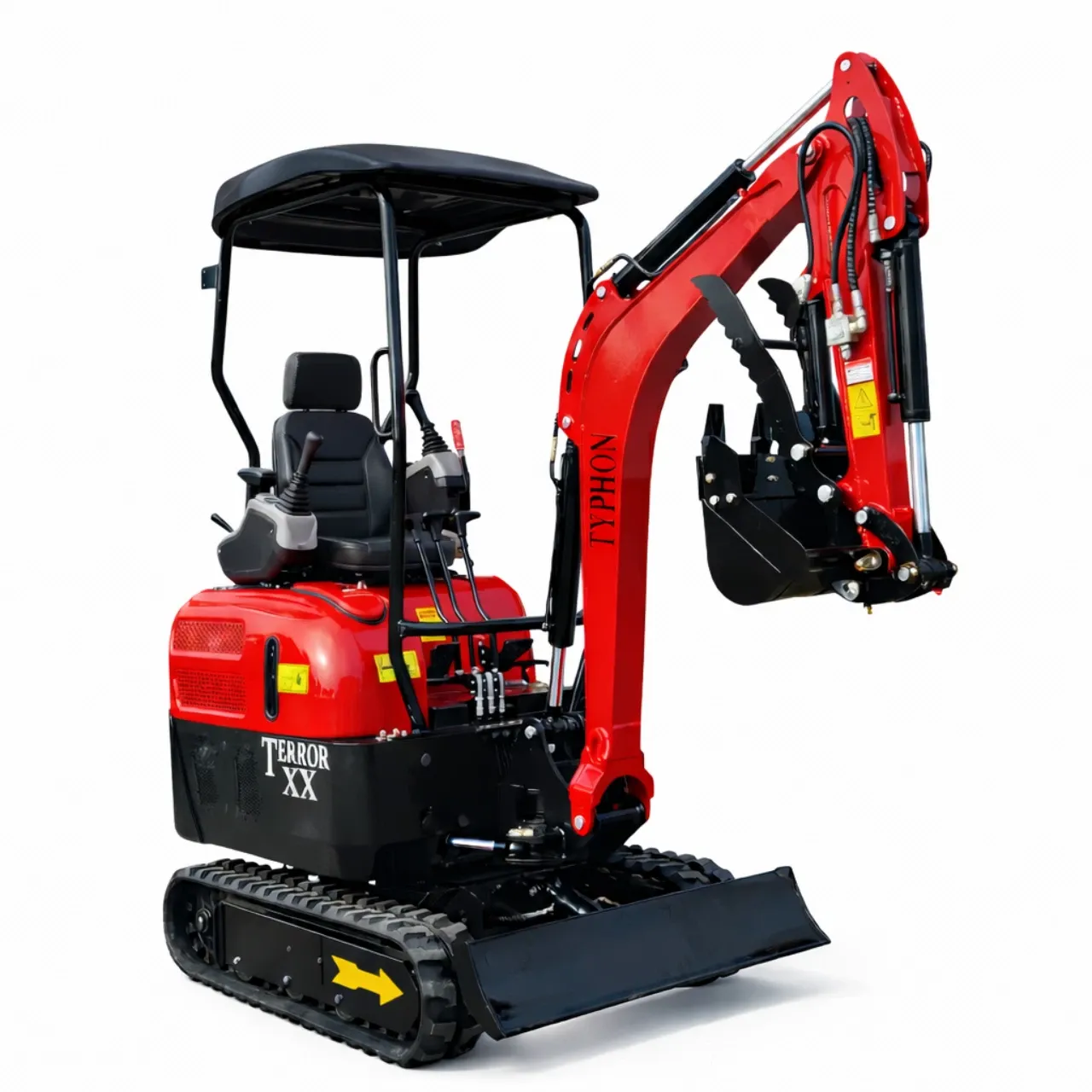

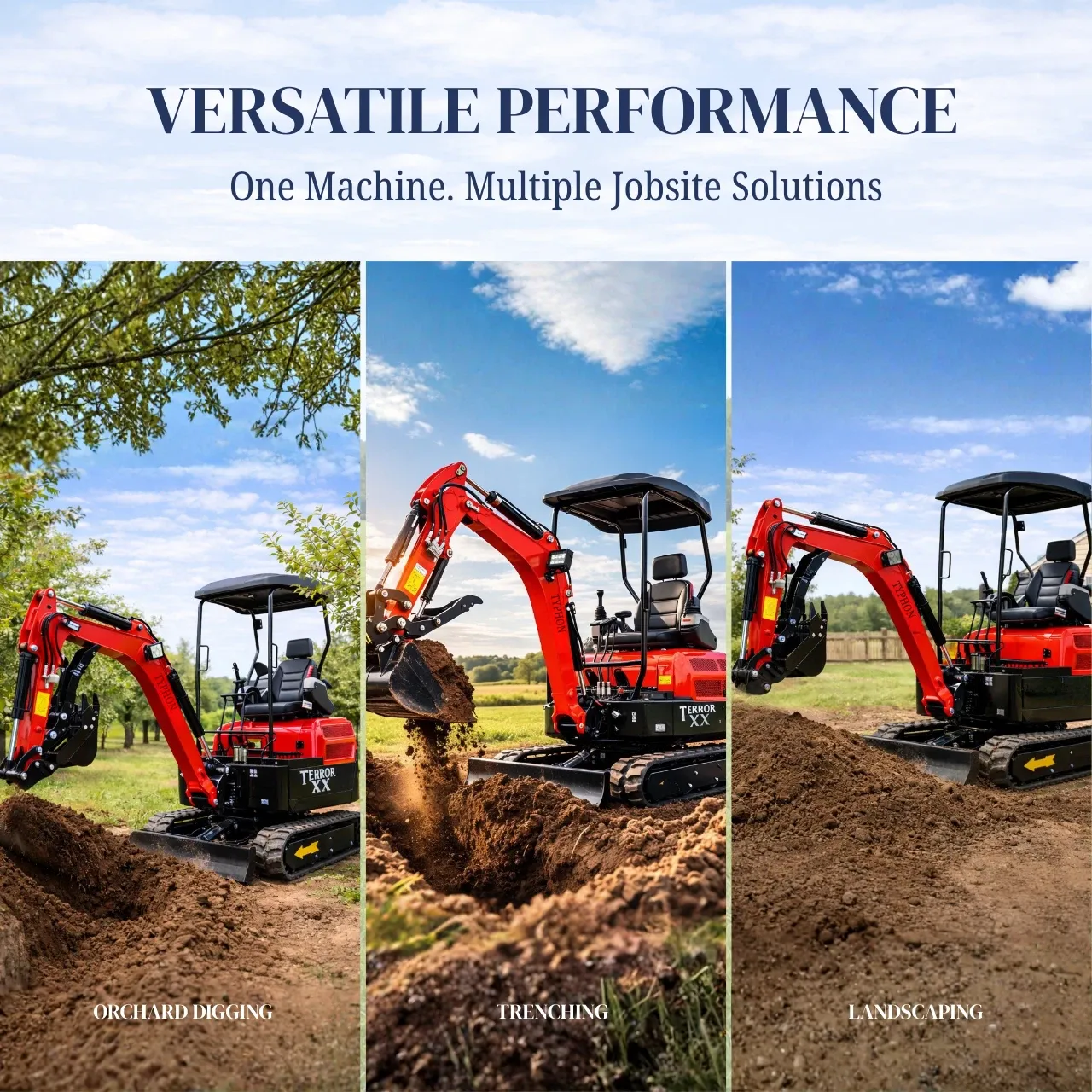

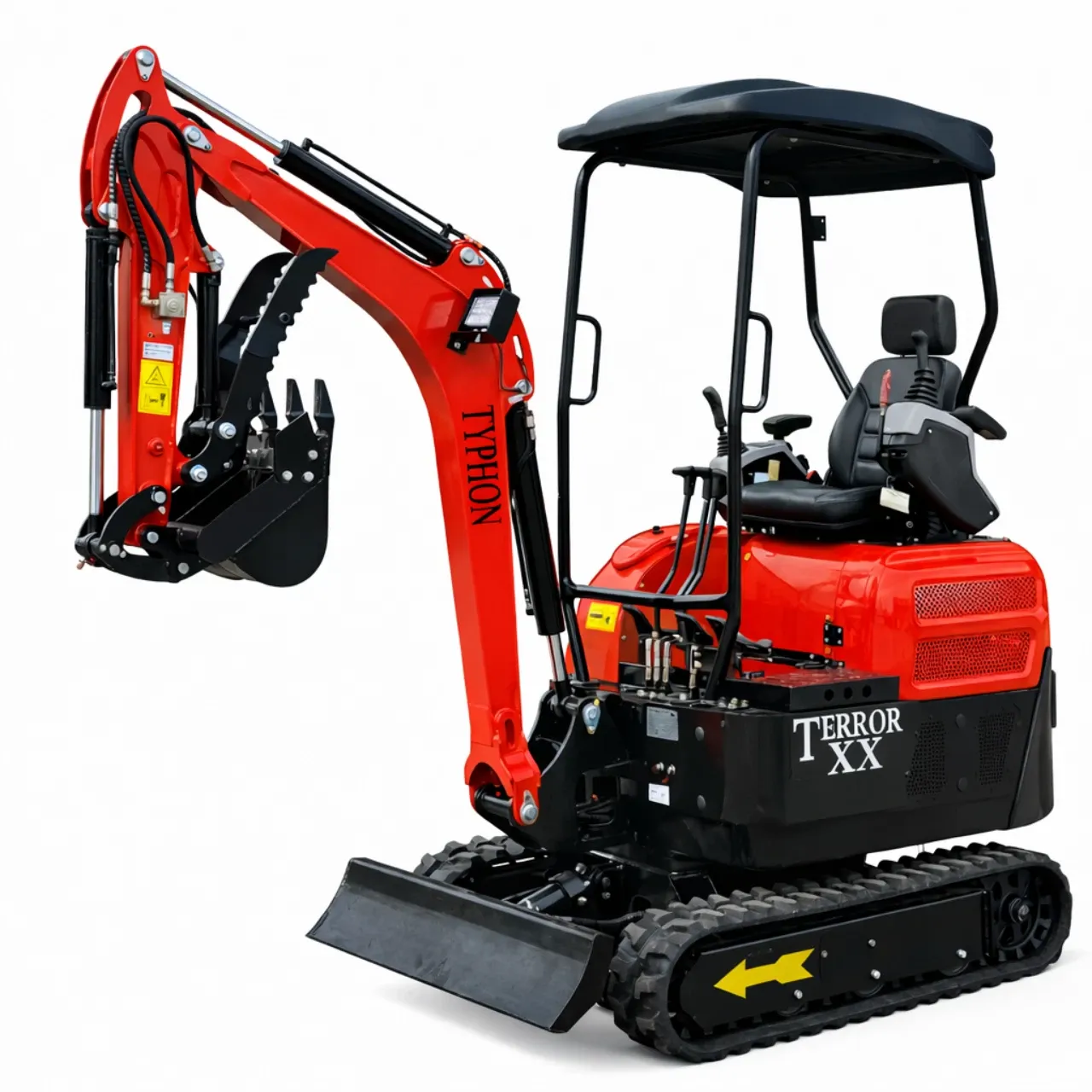

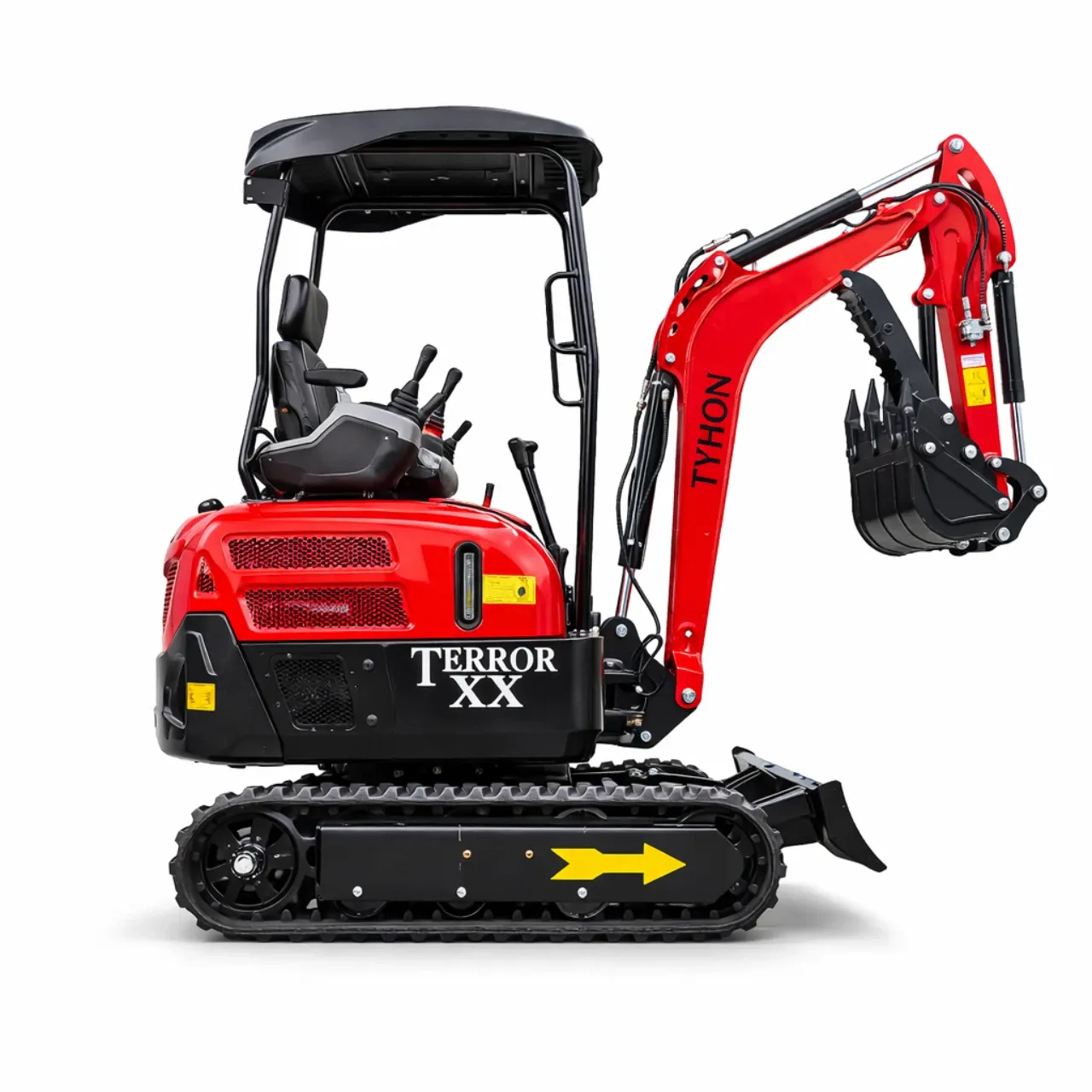

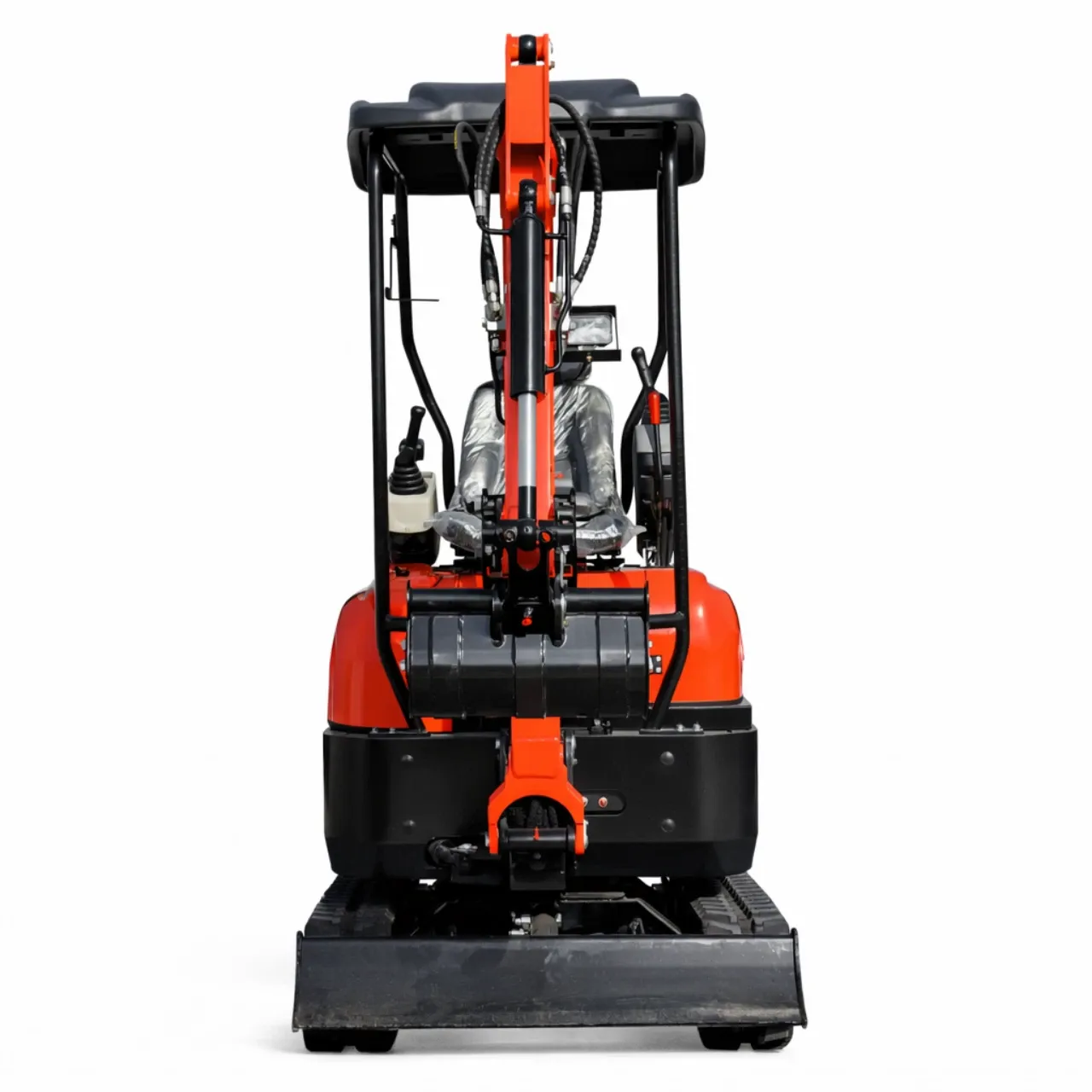

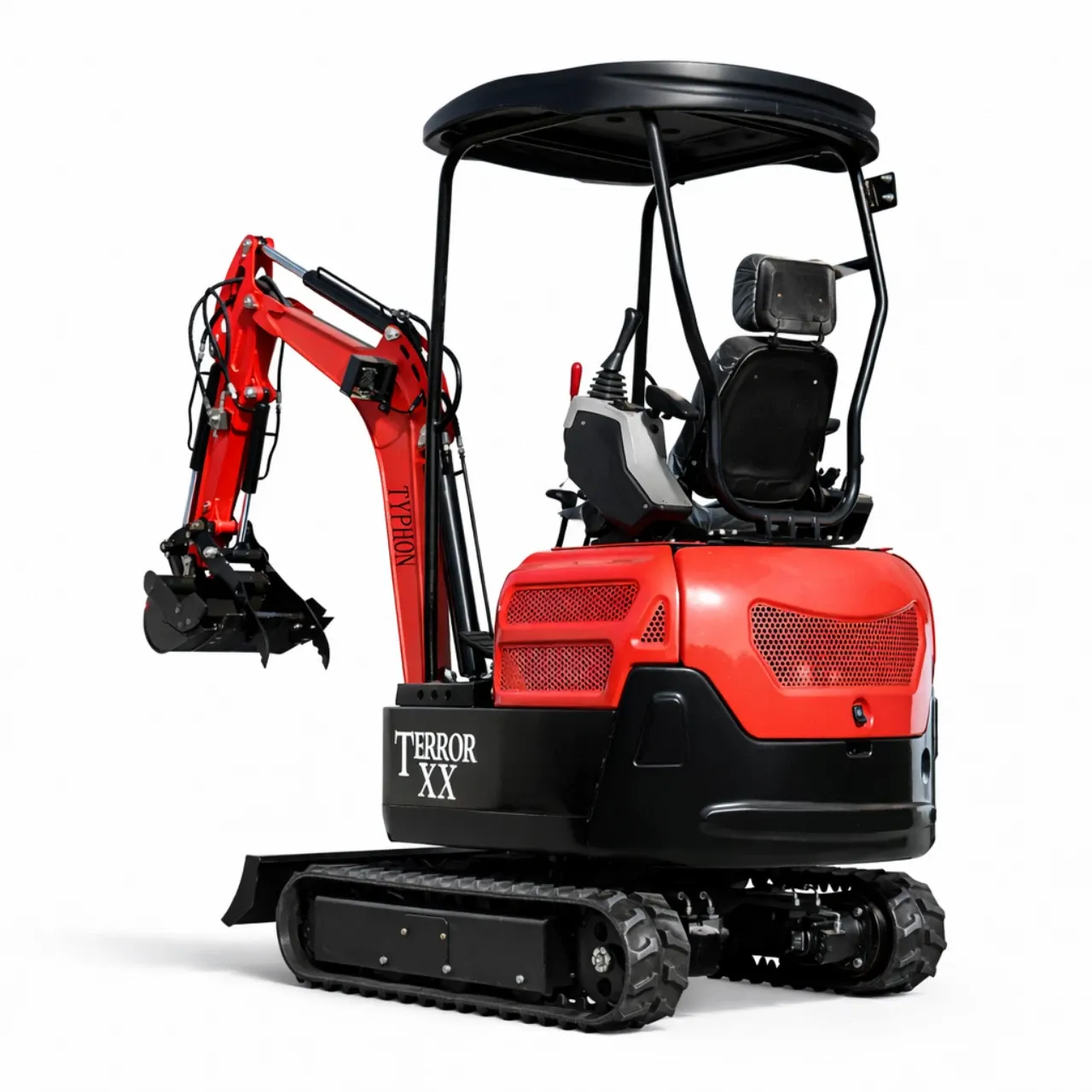

The TYPHON TERROR XX 4000lbs mini excavator is engineered to deliver exceptional performance where larger machines cannot operate. Built for demanding projects, this compact powerhouse provides the reliability and strength required for professional landscaping, utility work, farming, and construction. Its thoughtful design allows you to navigate tight spaces with confidence, making it an indispensable tool for your fleet.

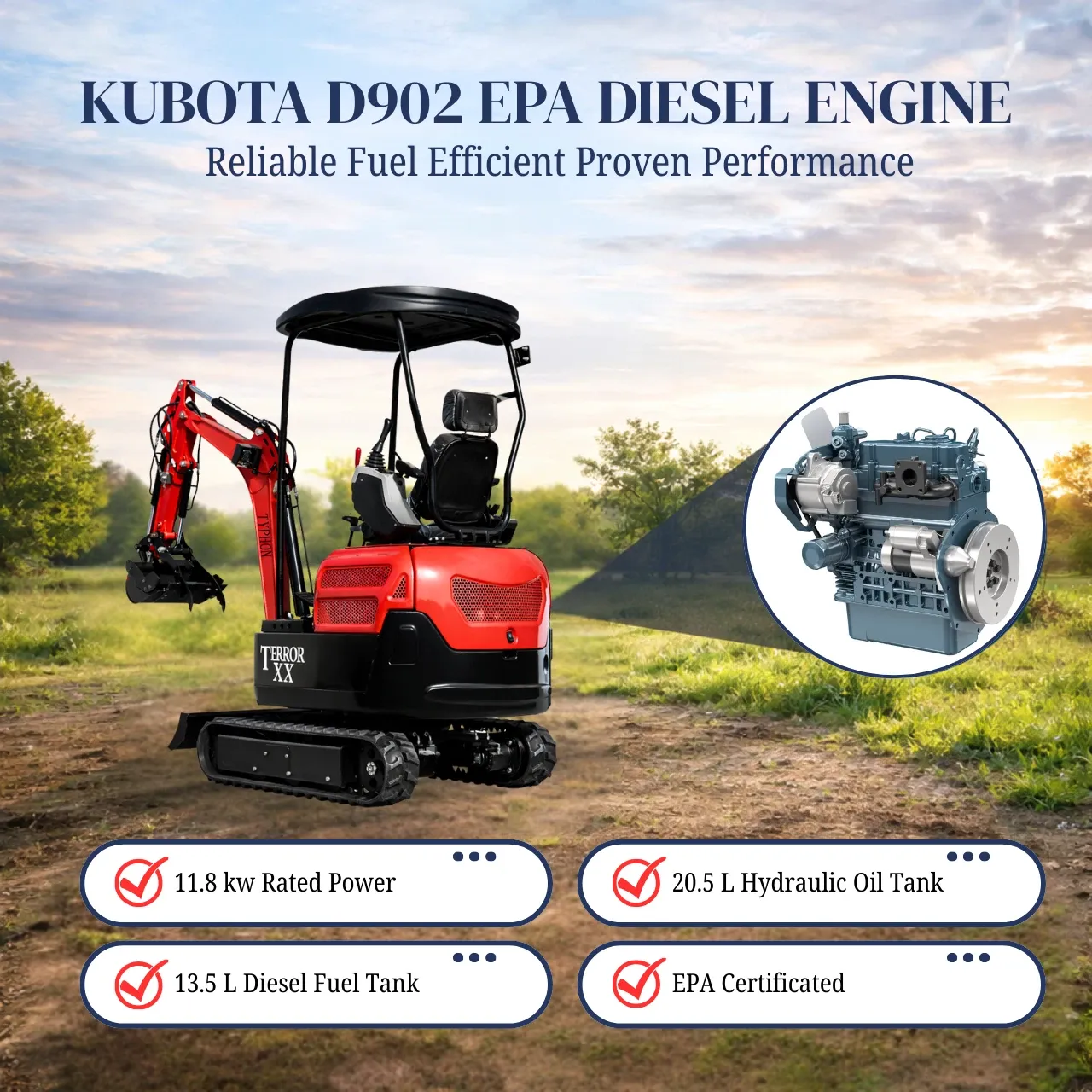

Powered by an EPA-certified Kubota D902 diesel engine, the TERROR XX offers a superior combination of robust digging force, remarkable fuel efficiency, and long-term durability. Trust in a machine built to work as hard as you do, day after day.
Key Features
- ✔ EPA-Certified Kubota D902 Engine — Reliable 3-cylinder diesel for strong torque, low noise/vibration, and long service life.

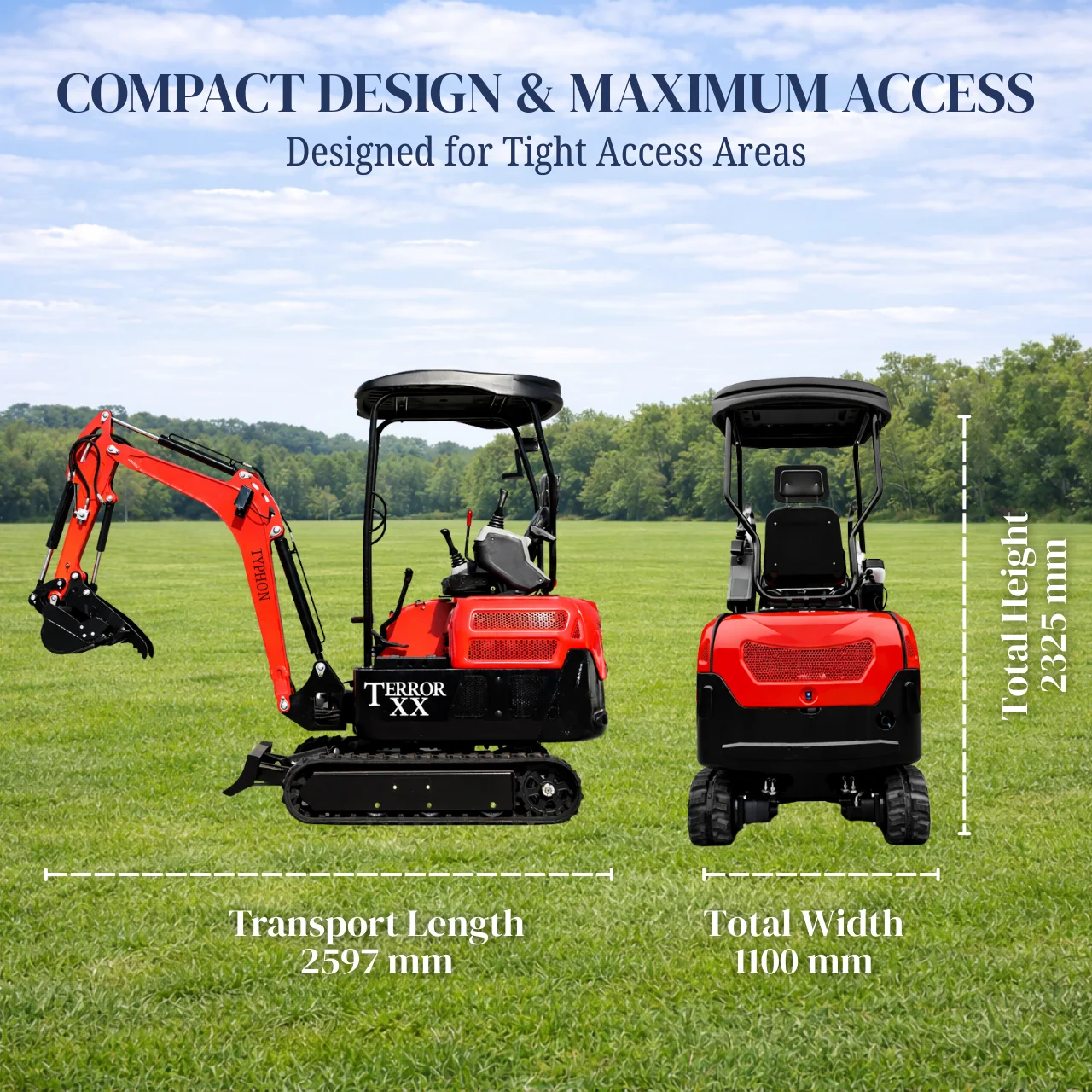

- ✔ Compact & Maneuverable — 1100 mm width, minimal tail swing radius (~1013 mm), and boom swing for tight-spot operation.

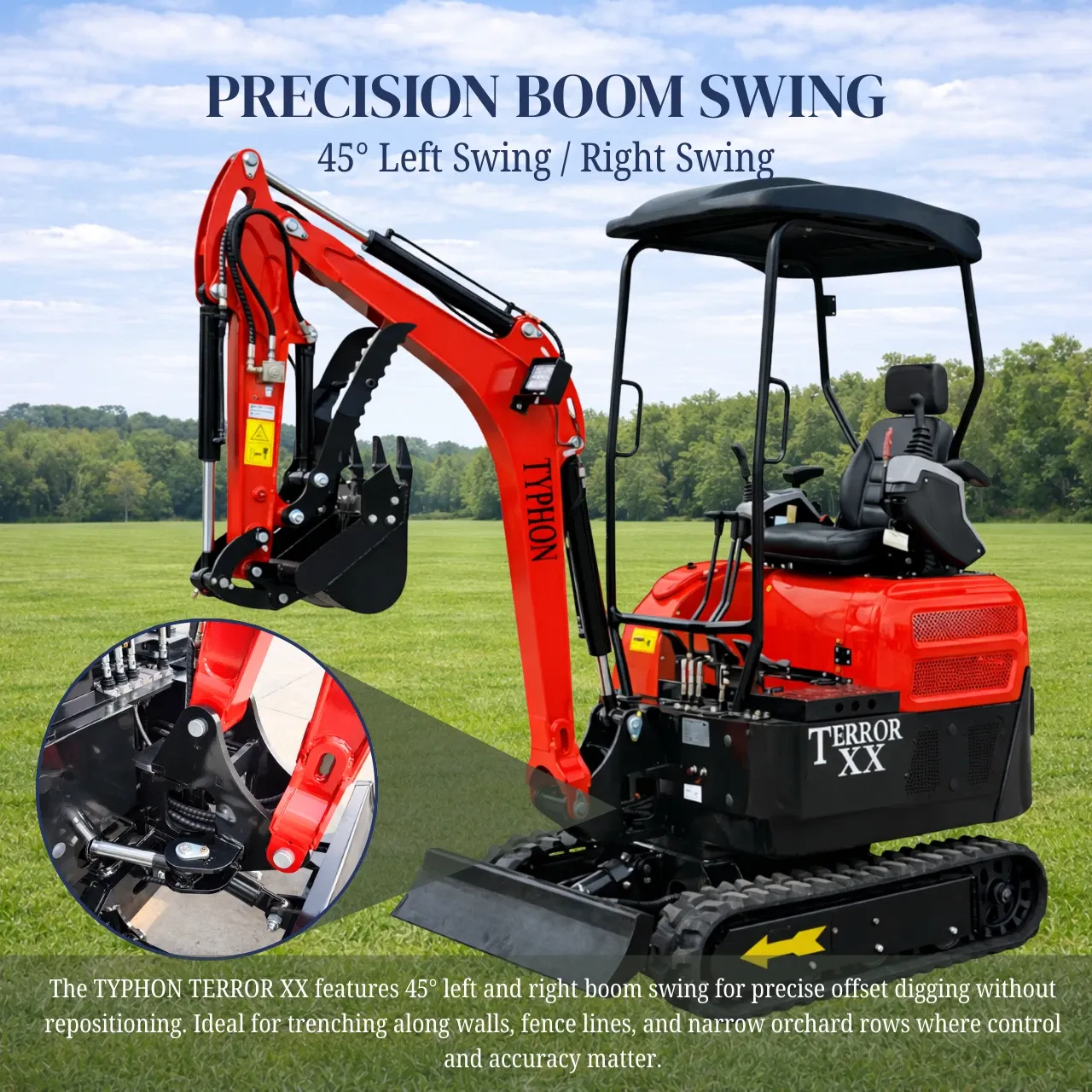

- ✔ Boom Swing — 45º/45º (Left/Right)

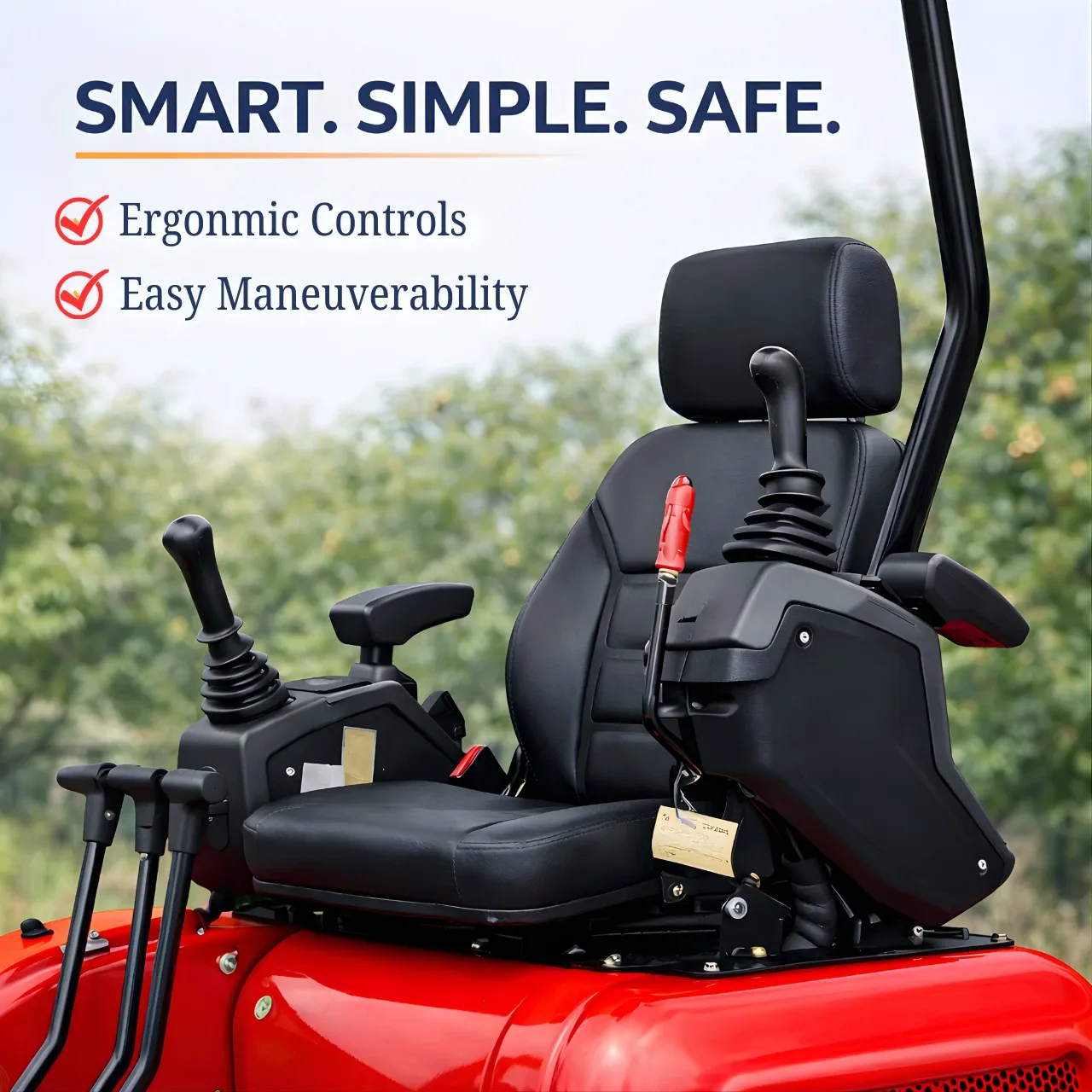

- ✔ Pilot Control System — Precision at Your Fingertips

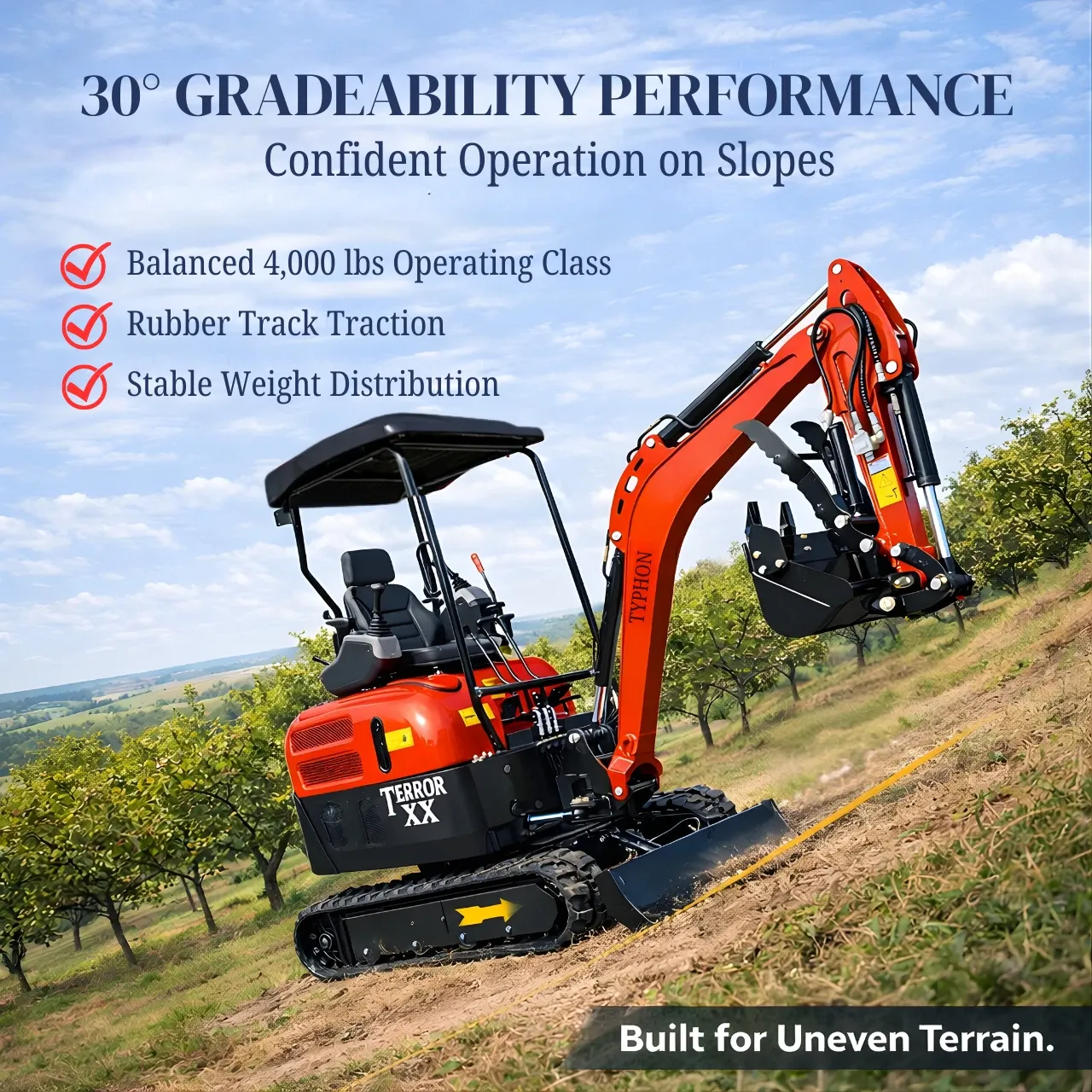

- ✔ Rubber Tracks & Low Ground Pressure — Excellent stability with minimal surface impact.

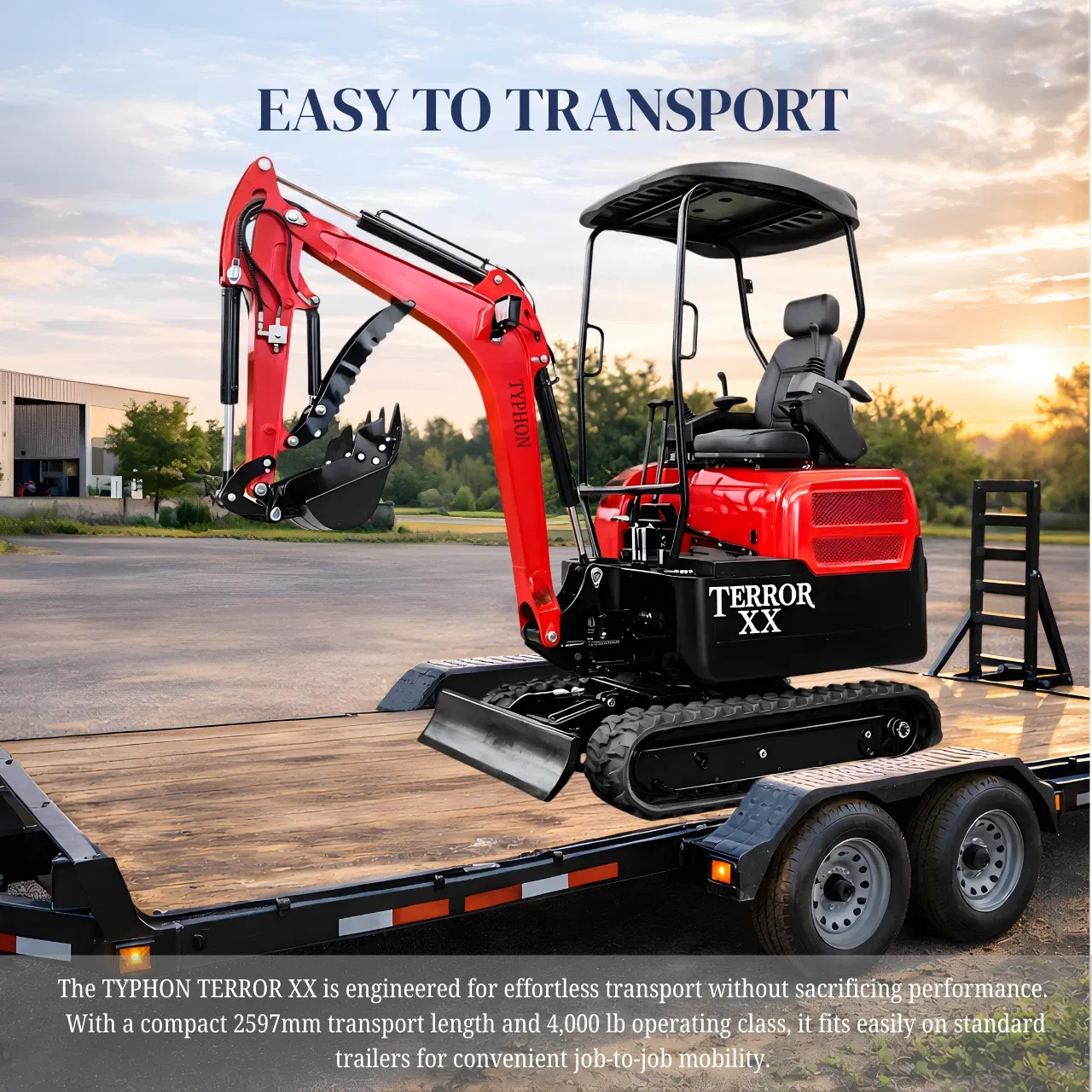

- ✔ User-Friendly Controls — Smooth joystick operation, easy startup, and transport

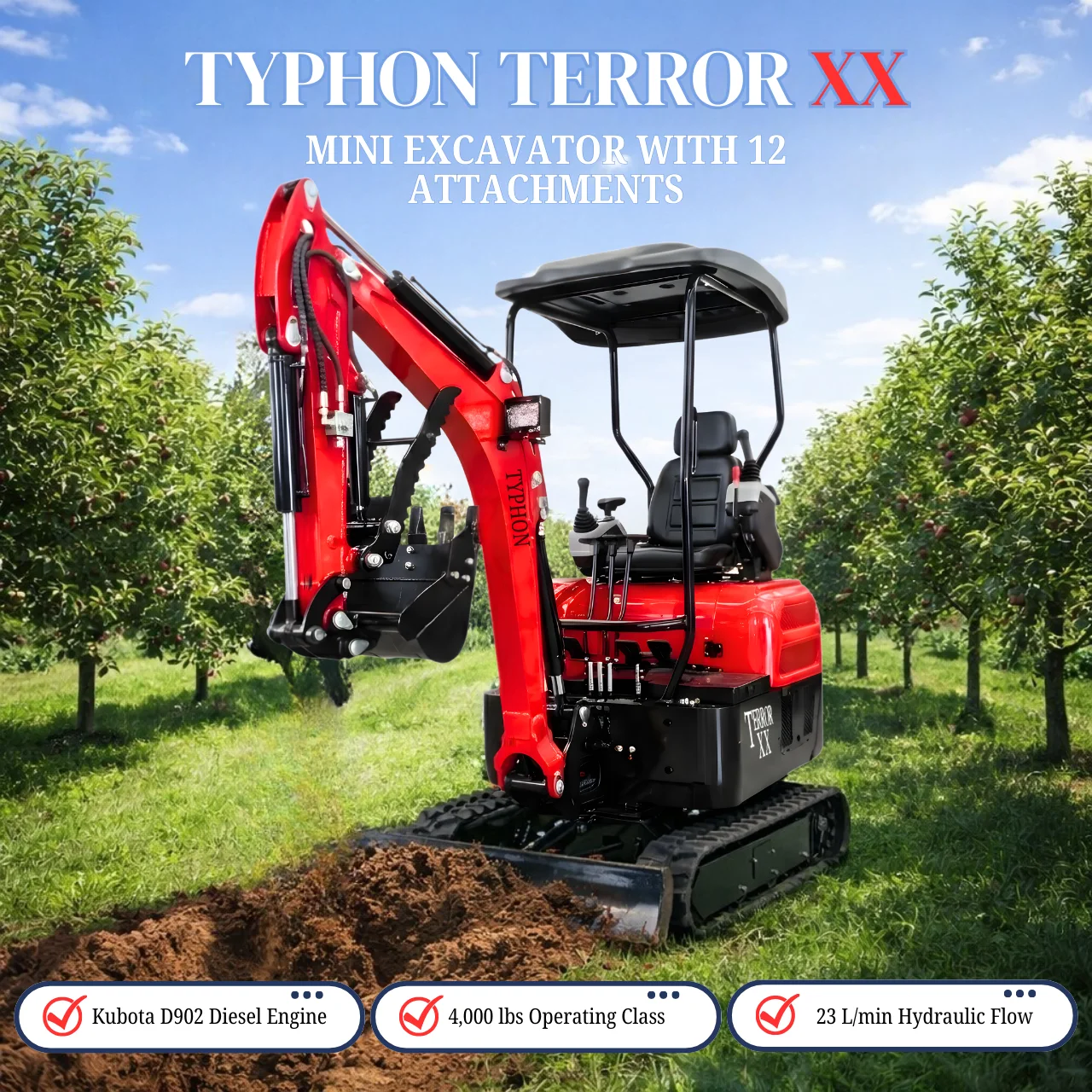

- ✔ Versatile & Loaded — Comes with quick hitch and a full suite of 12 attachments such as rake, ripper, grapple, auger, hydraulic break hammer, 200mm narrow bucket, 500mm plain bucket, 600mm tilting bucket, 600mm screen bucket, 450mm wide bucket and a hydraulic thumb clip for immediate productivity.

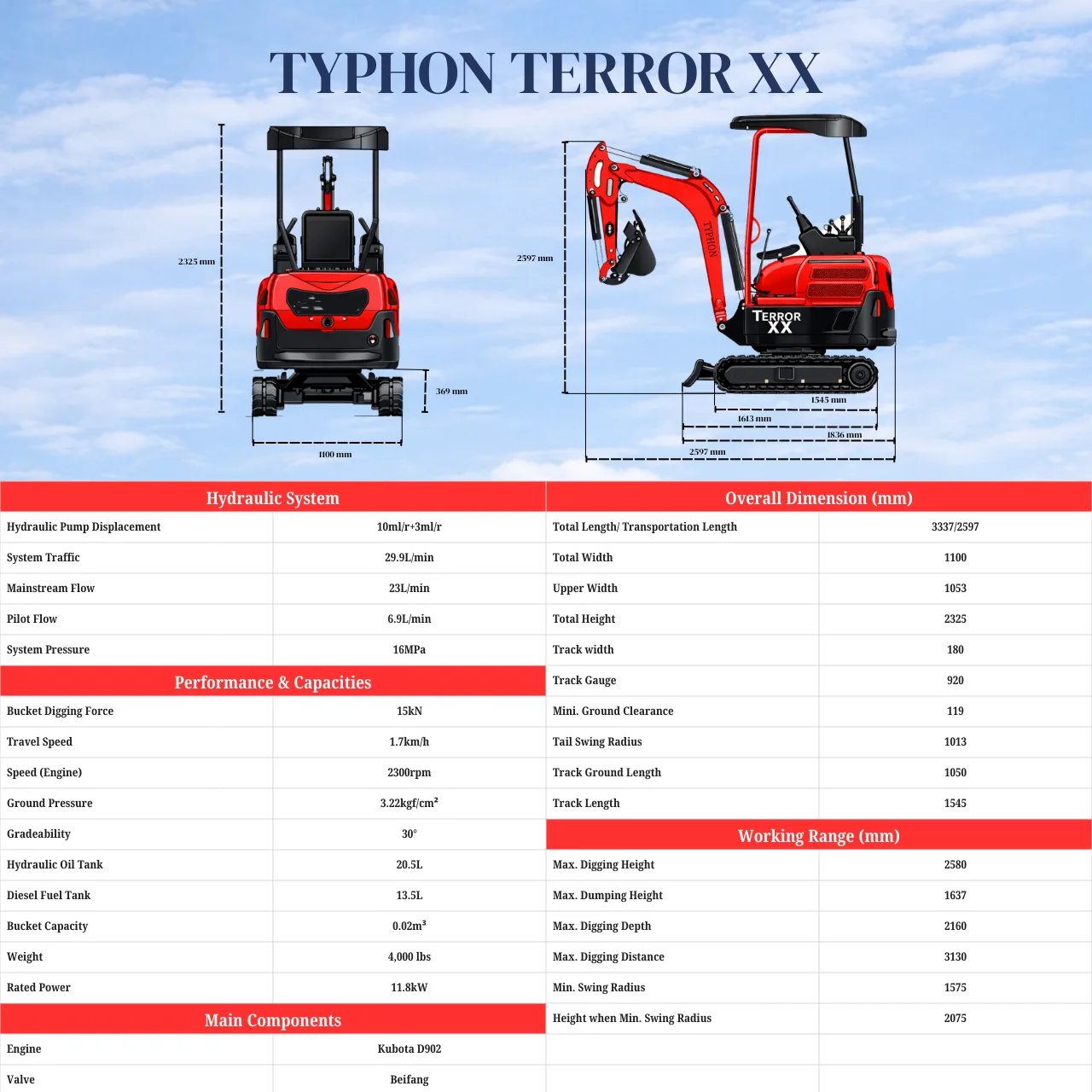

Specifications
Item Details
| Operating weight | 4,000 lbs |
| Engine | Kubota D902 |
| Rated Power | 11.8 kW @ 2300 RPM |
| Travel speed | 1.8 km/h |

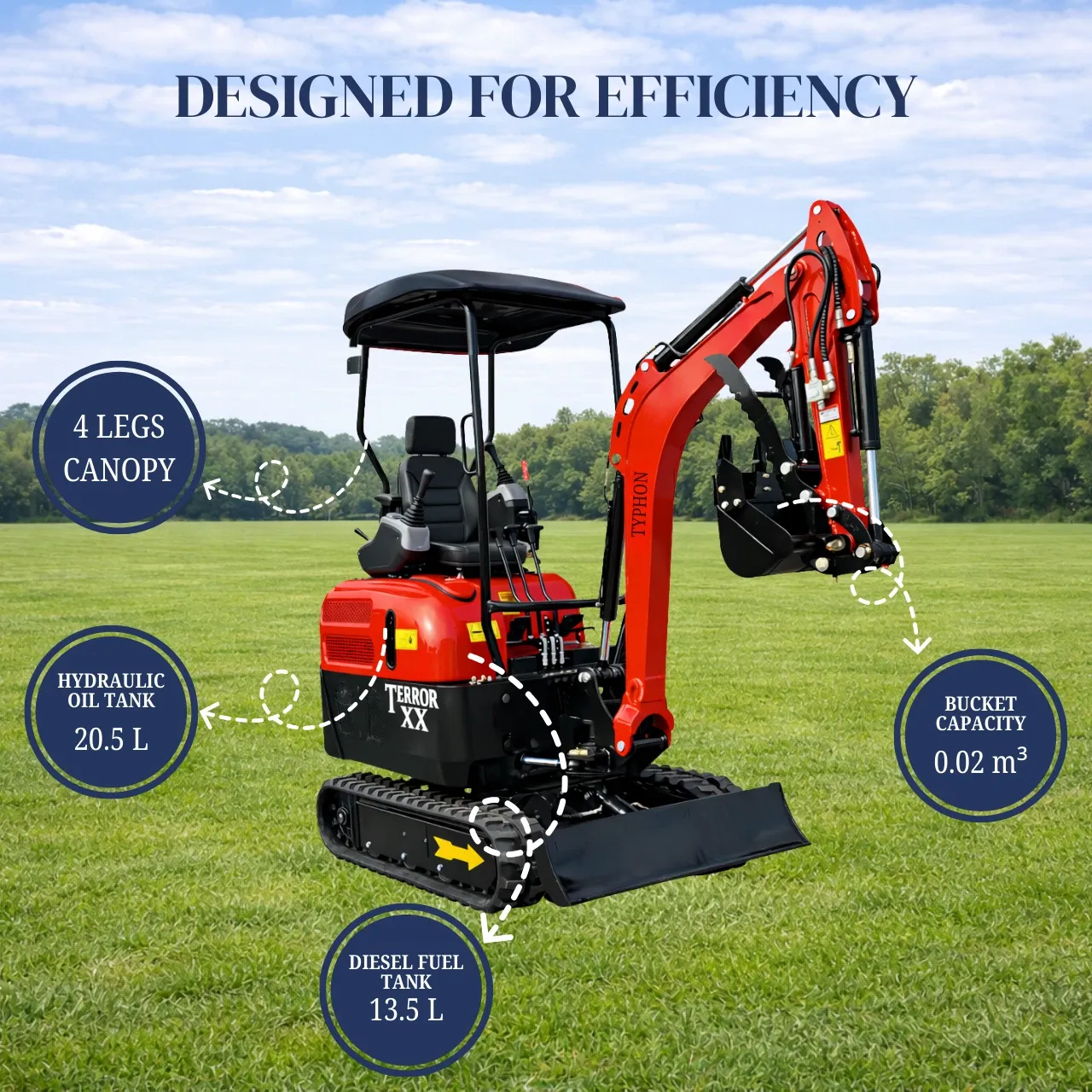

| Hydraulic tank capacity | 20.5 L |
| Diesel fuel tank capacity | 13.5 L |
| Bucket digging force | 15 kN |
| Ground pressure ratio | 3.22 kgf/cm² |
| Bucket digging force | 15 kN |

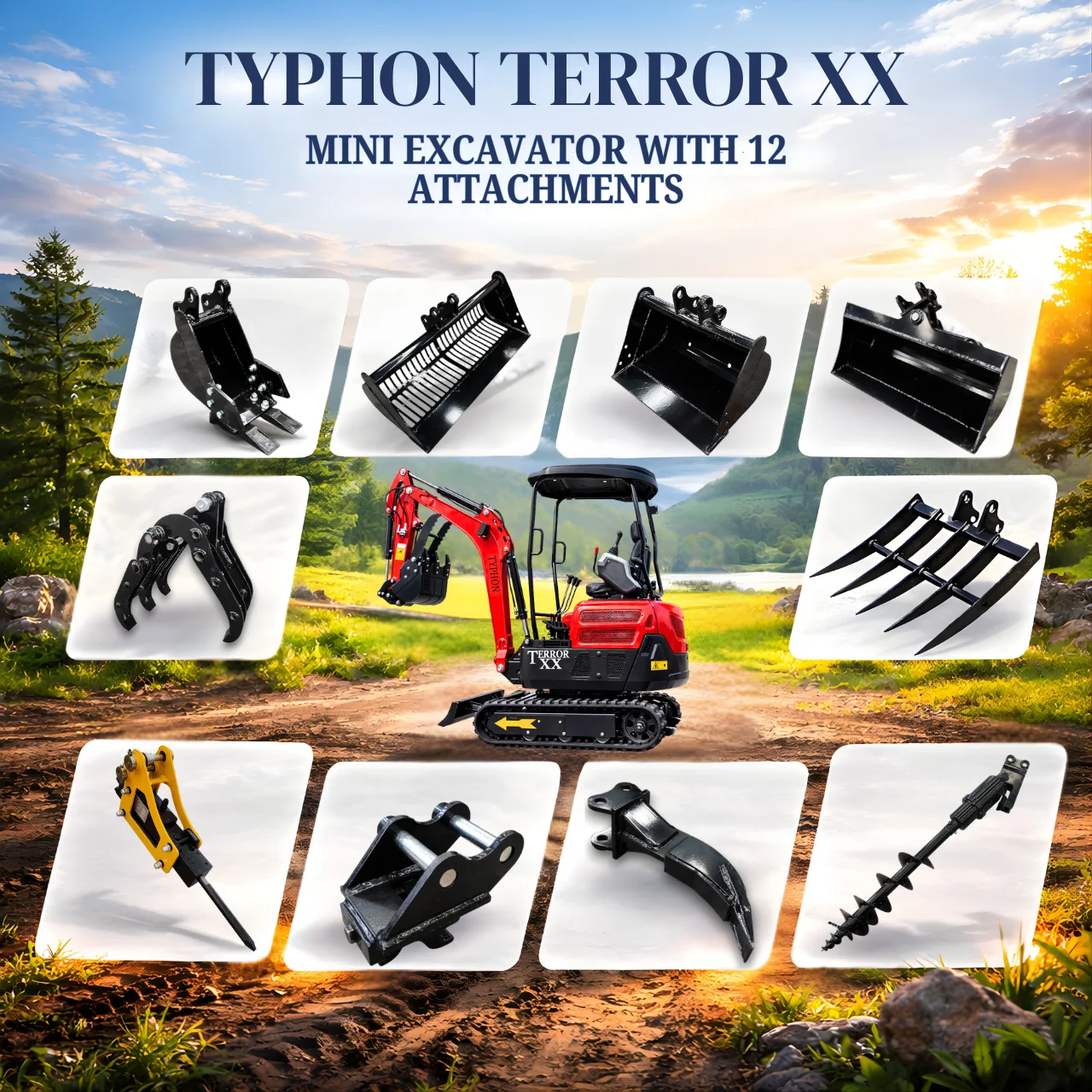

Optional Attachments
Normal Bucket and Hydraulic Thumb Clip and following:
AttachmentApplication
| Quick Hitch | Fast attachment changes |
| 200mm Narrow Bucket | Utility trenching |
| 500mm Mud Bucket | General digging |
| Rake | Land clearing |
| Ripper | Hard soil breaking |
| Grapple | Log & debris handling |
| Auger | Post holes |
| Skeleton Bucket | Soil screening |
| 600mm Tilting Bucket | Grading |
| Hydraulic Break Hammer | Demolition |

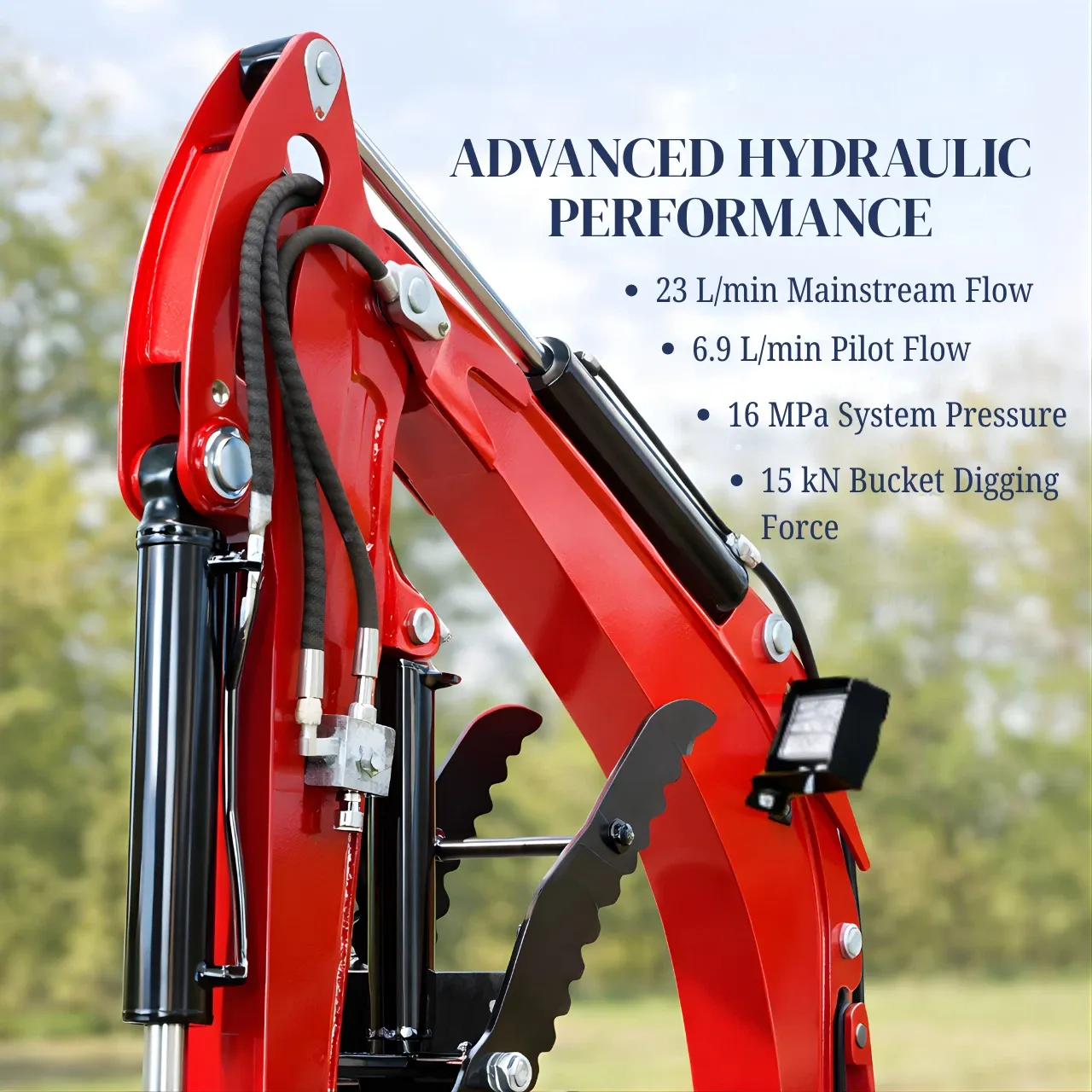

Hydraulic System
- Main Pump Flow: 23 L/min
- Pilot Flow: 6.9 L/min
- Pump Flow Rate: 10 ml/r + 3 ml/r
- System Pressure: 15–16 MPa
- Hydraulic Tank Capacity: 20.5 L
- System flow rate: Main flow 23 L/min / Pilot flow 6.9 L/min
- Working RangeFunctionMeasurement
Max Digging Depth 2160 mm Max Digging Distance 3130 mm Max Dumping Height 1637 mm Max. digging height 2580 mm Min. swing radius 1575 mm Height at min. swing radius 2075 mm
